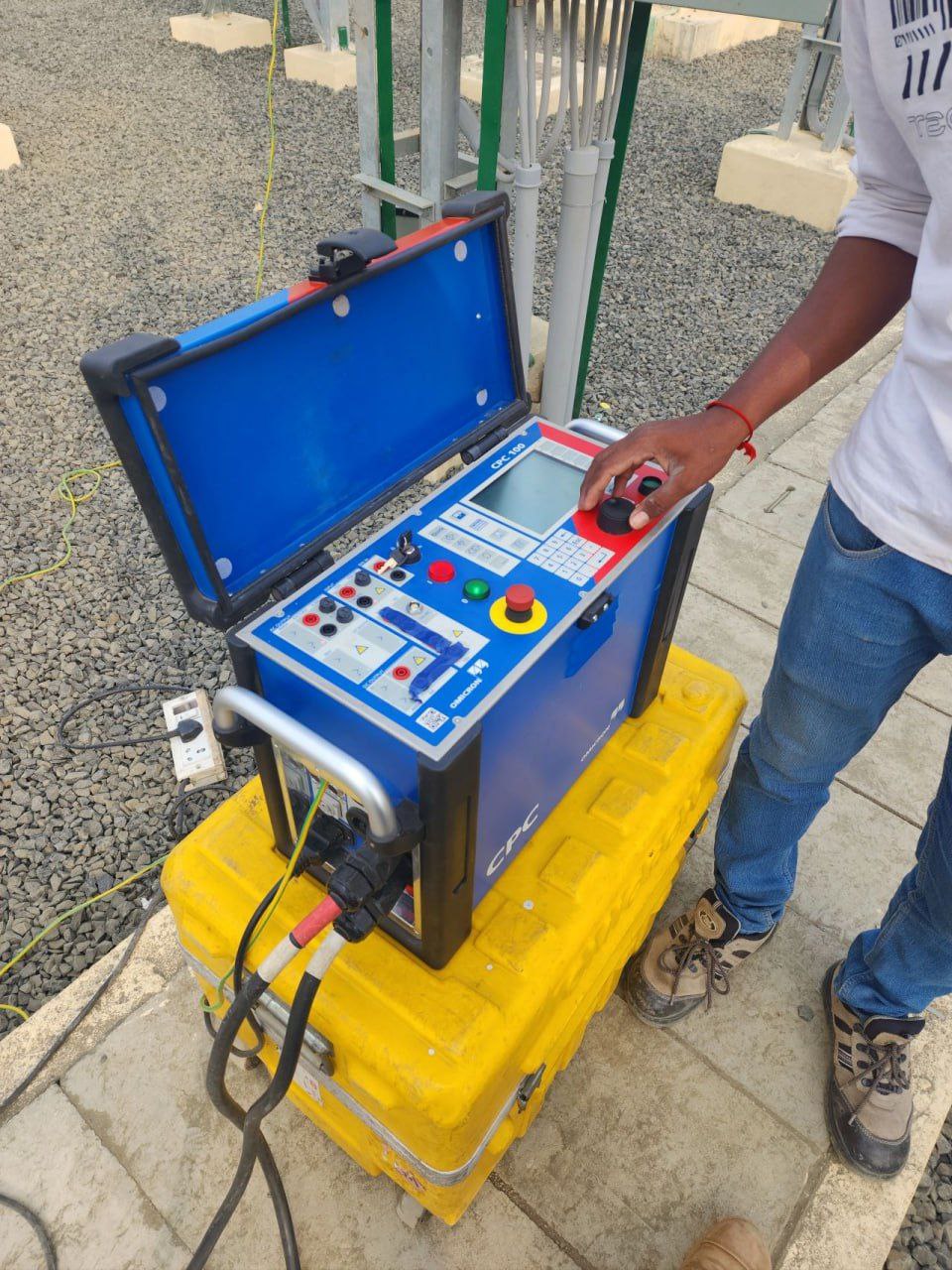

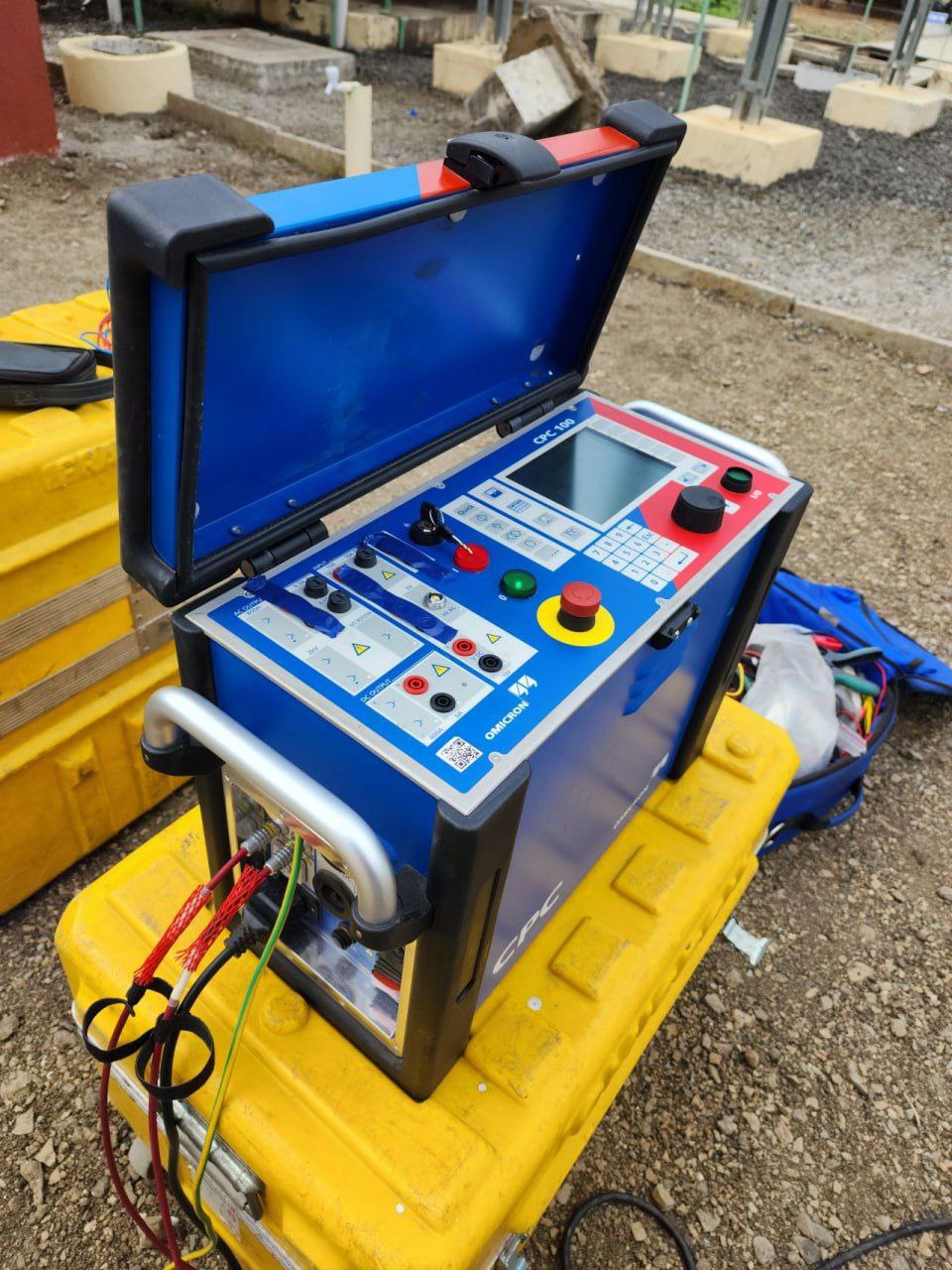

Omicron CPC 100 Universal Primary Current Injection Test Set ✅

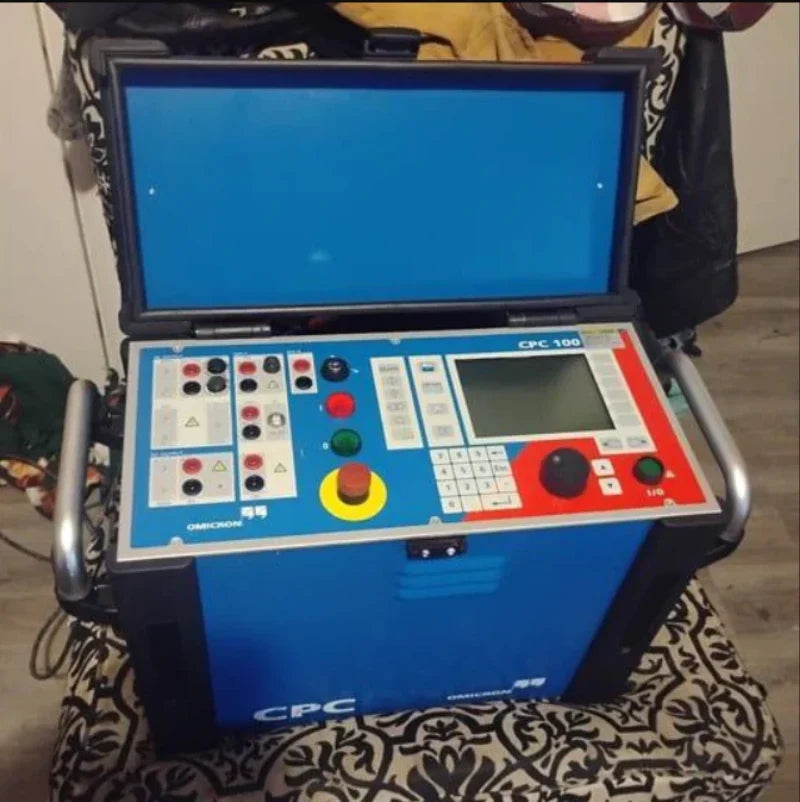

OMICRON CPC 100 – Primary Injection Test System

The patented OMICRON CPC 100 is a powerful, all-in-one primary injection test system that replaces multiple individual testing devices. By combining several functions in one unit, it significantly reduces training costs, transport effort, and overall testing time, making it an ideal solution for substation commissioning and maintenance.

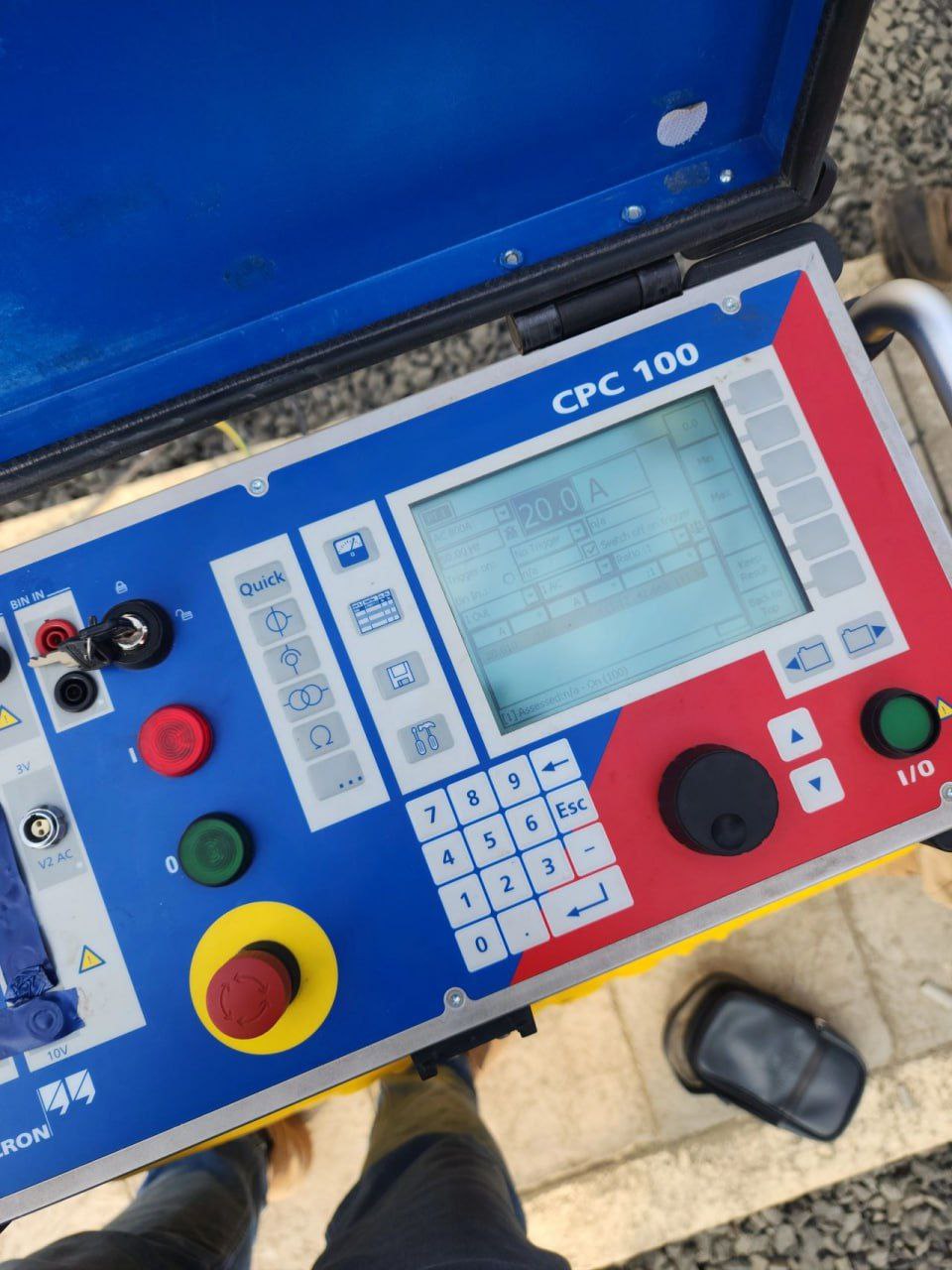

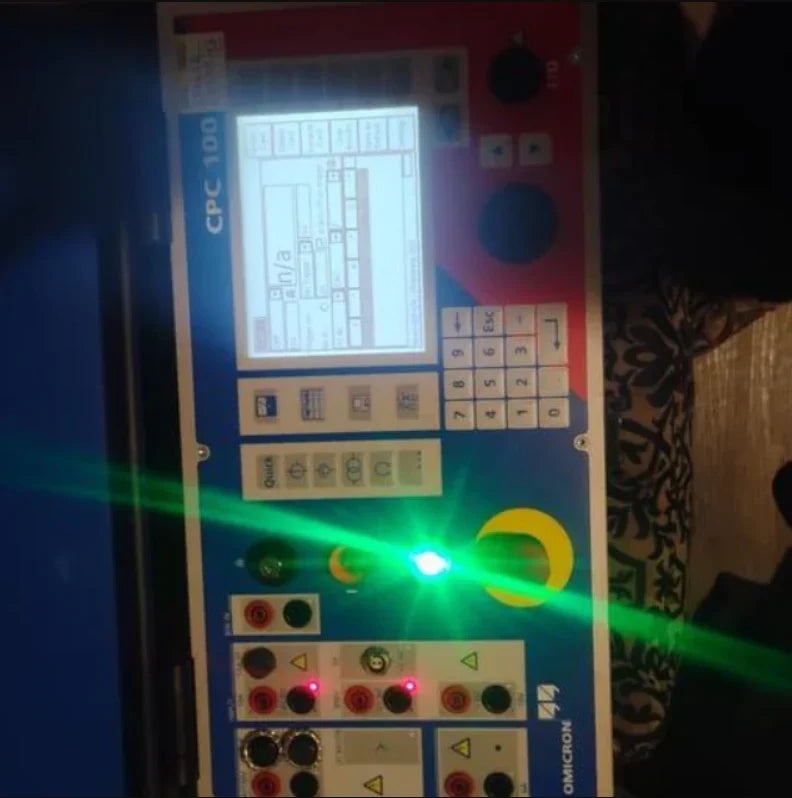

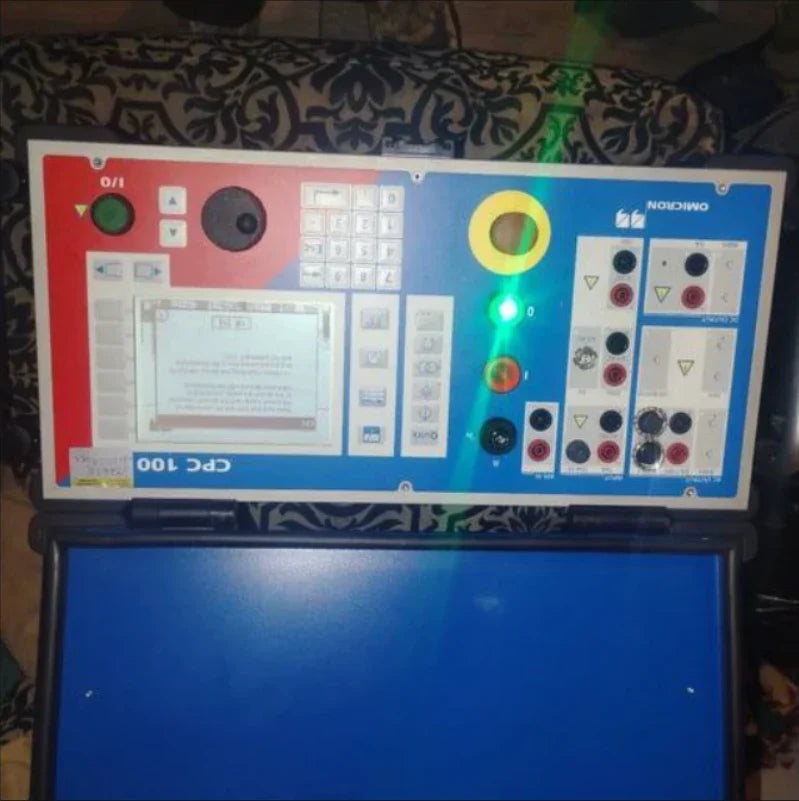

The CPC 100 can be operated directly via its integrated front panel or through a laptop using Primary Test Manager™ (PTM) software, which provides automated test procedures, templates, and professional test reports.

With the CPC Sync feature, up to three CPC 100 units can be synchronized, creating a mobile and scalable high-voltage source. This enables on-site induced voltage testing for dry-type transformers (DTT) and gas-insulated switchgear (GIS).

Key Features & Capabilities:

Output up to 800 A or 2000 V, with 5 kVA power

Frequency range: 15 Hz – 400 Hz

400 A DC output

Expandable up to 2000 A or 12 kV / 15 kV using current or voltage amplifiers

Excellent interference suppression for accurate measurement of small signals

Lightweight and portable – only 29 kg, ideal for field testing

Automated testing procedures and report generation

The OMICRON CPC 100 is a reliable, efficient, and versatile testing solution trusted worldwide for high-voltage equipment testing.
